BIOFLOCⓡ ?
- BIOFLOC is an Bio-polymer polysaccharide secreted by the white
fungus, Pestalotiopsis sp. extra-cellularly.
- Differently from other Bio-polymer produced by microorganisms,
BIOFLOC has significant molecular weight greater than 5 million
dalton.
- Structure and molecular weight may be retained uniformly during
the cultivation, therefore flocculating activity can be maintained
uniformly.
- BIOFLOC is a polysaccharide consisted of 5 carbohydrates. It's
ratio is as the follow ;
galactosamine : glucuronic acid : galacturonic acid : glucose
: galactose = 10.77 : 2.87 : 1 : 50.65 : 1.39
- BIOFLOC is a branched polysaccharide with the bond pattern
of α-, β- type.
|
|
|
|
Conidia of Pestalotiopsis sp.
|
Plate Photo of Pestalotiopsis sp.
|
Characteristics
◈ High flocculating activity higher than chemically synthesized
polymer coagulants(Same effect by adding 1/2 ~ 1/5 of dosage)
◈ Removal of suspended material and heavy metal in waste water
◈ COD, Chromaticity Reducing Effect
◈ For Bulking Control and Pinfloc Prevention
◈ Full Removal of Secondary Contamination through bio-degradability,
atoxicity
◈ Reuse of Surplus Sludge (utilize as a fertilizer)
◈ Dredging Work
◈ Removal of Fermentating Bacteria
|
|
|
|
Conidia of Pestalotiopsis sp.
|
Plate Photo of Pestalotiopsis sp.
|
Specification
◈ Use : Removal of suspended material, solid substances and pigments
◈ Component : Bio-polysaccharide
◈ Appearance : Liquid State (0.1% solution)
◈ Functions
- Non-toxic and Bio-degradable
- Excellent flocculating activity and de-coloring function
- COD removal and heavy metals absorption
- Stability to temperature, pH, salts
- Reuse of surplus sludge (fertilizer)
Specification
◈ 2mL of diluted solution(15-20 times)/treating volume 100mL(final
concentration : 1-1.3ppm)
◈ Treatment : After the treatment of BIOFLOC, Fast/Slow Stirring
[At the Laboratory]
|
Solid Suspension (96㎖)
|
|
↓
|
|
Adding 2㎖of 5% CaCl2 Solution
|
|
↓
|
|
Fast Stirring at 300 rpm for 1 min
|
|
↓
|
|
Adding 2㎖ of Diluted Biofloc Solution
|
|
↓
|
|
Fast Stirring at 300 rpm for 30 seconds
|
|
↓
|
|
Slow Stirring at 100 rpm for 30 seconds
|
|
↓
|
|
Fixation for 3 minutes
|
|
↓
|
|
Measurement of Cleanness
|
[At the Site]
- Based on usage at the laboratory, the product is used under
conditions suitable for the site.
- After consultation, conditions suitable for the site is established
through 100% technical support.
◈ Packing Unit : 20L (changeable at user's demand)
◈ Storage : cool place, valid for 6 months

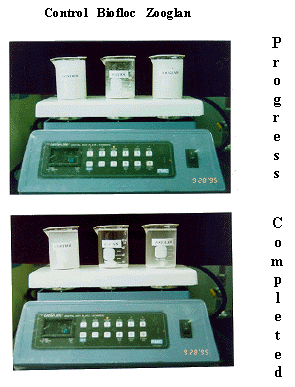

Test Results
[Data Ⅰ]
| ◈ Flocculating activity by concentration
◈ |
◈ Flocculating activity of suspension
◈ |
 |
 |
[Data Ⅱ]
| ◈ Stability by temperatures ◈ |
◈ Flocculating activity by pH ◈ |
 |
 |

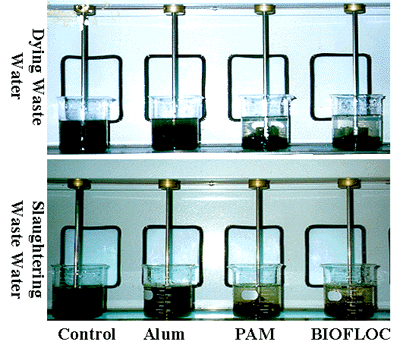

[Data Ⅲ]
| |
BIOFLOC
|
PAM
|
|
COD
Removal(%)
|
SS
Removal(%)
|
COD
Removal(%)
|
SS
Removal(%)
|
| Dyeing Waste Water |
73
|
92
|
63
|
87
|
| Butcherywaste water |
62
|
91
|
55
|
86
|
|
